Tool Selection > Drilling >
MULTI-1 POWERED METAL DRILLS
STUB LENGTH, TiAlN

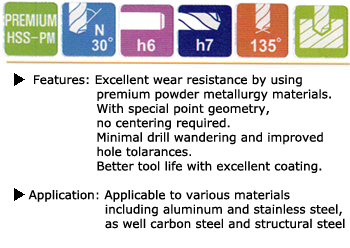

HSS-PM MULTI-1 DRILL, STUB LENGTH, TiAlN
EDP. NO
OD
SD
LOC
OAL
M15006
3/32
1/8
1/2
1 3/4
M15007
7/64
1/8
5/8
1 7/8
M15008
1/8
1/8
3/4
2
M15009
9/64
3/16
13/16
2 1/8
M15010
5/32
3/16
13/16
2 1/8
M15011
11/64
3/16
1
2 3/8
M15012
3/16
3/16
1
2 3/8
M15013
13/64
1/4
1 1/8
2 7/8
M15014
7/32
1/4
1 1/8
2 7/8
M15015
15/64
1/4
1 1/4
3
M15016
1/4
1/4
1 1/4
3
M15017
17/64
3/8
1 3/8
3 3/16
M15018
9/32
3/8
1 3/8
3 3/16
M15019
19/64
3/8
1 3/8
3 3/16
M15020
5/16
3/8
1 1/2
3 3/8
M15021
21/64
3/8
1 1/2
3 3/8
M15022
11/32
3/8
1 5/8
3 1/2
M15023
23/64
3/8
1 5/8
3 1/2
M15024
3/8
3/8
1 5/8
3 1/2
M15025
25/64
1/2
1 11/16
3 7/8
M15026
13/32
1/2
1 11/16
3 7/8
M15027
27/64
1/2
1 7/8
4 1/8
M15028
7/16
1/2
1 7/8
4 1/8
M15029
29/64
1/2
1 7/8
4 1/8
M15030
15/32
1/2
2
4 1/4
M15031
31/64
1/2
2
4 1/4
M15032
1/2
1/2
2
4 1/4
M16045
45
1/8
3/4
2
M16044
44
1/8
3/4
2
M16043
43
1/8
3/4
2
M16042
42
1/8
3/4
2
M16041
41
1/8
13/16
2 1/16
M16040
40
1/8
13/16
2 1/16
M16039
39
1/8
13/16
2 1/4
M16038
38
1/8
13/16
2 1/4
M16037
37
1/8
13/16
2 1/4
M16036
36
1/8
13/16
2 1/4
M16034
34
1/8
7/8
2 5/16
M16033
33
1/8
7/8
2 5/16
M16030
30
3/16
15/16
2 3/8
M16029
29
3/16
15/16
2 3/8
M16028
28
3/16
15/16
2 3/8
M16027
27
3/16
1
2 7/16
M16026
26
3/16
1
2 7/16
M16025
25
3/16
1
2 7/16
M16024
24
3/16
1
2 7/16
M16023
23
3/16
1
2 7/16
M16022
22
3/16
1 1/16
2 1/2
M16021
21
3/16
1 1/16
2 1/2
M16020
20
3/16
1 1/16
2 1/2
M16019
19
3/16
1 1/16
2 1/2
M16015
15
3/16
1 1/18
2 9/16
M16014
14
3/16
1 1/18
2 9/16
M16010
10
1/4
1 3/16
3
M16009
9
1/4
1 3/16
3
M16008
8
1/4
1 3/16
3
M16007
7
1/4
1 3/16
3
M16006
6
1/4
1 1/4
3 1/16
M16005
5
1/4
1 1/4
3 1/16
M16004
4
1/4
1 1/4
3 1/16
M16003
3
1/4
1 1/4
3 1/16
M16002
2
1/4
1 5/16
3 1/8
M16001
1
1/4
1 5/16
3 1/8
M1700B
B
1/4
1 3/8
3 3/16
M1700C
C
1/4
1 3/8
3 3/16
M1700D
D
1/4
1 3/8
3 3/16
M1700F
F
3/8
1 7/16
3 1/4
M1700G
G
3/8
1 7/16
3 1/4
M1700I
I
3/8
1 1/2
3 5/16
M1700J
J
3/8
1 1/2
3 5/16
M1700L
L
3/8
1 9/16
3 3/8
M1700M
M
3/8
1 9/16
3 3/8
M1700N
N
3/8
1 5/8
3 7/16
M1700O
O
3/8
1 11/16
3 1/2
M1700Q
Q
3/8
1 11/16
3 1/2
M1700R
R
3/8
1 11/16
3 1/2
M1700U
U
3/8
1 13/16
3 5/8
M1700V
V
1/2
1 7/8
3 31/32
M1700X
X
1/2
1 15/16
4 1/32
M1700Y
Y
1/2
1 15/16
4 1/32
M1700Z
Z
1/2
2
4 1/32
