Drilling
  CARBIDE DREAM DRILLS
CARBIDE DRILL EXTRA LONG with COOLANT HOLES (8xD) - Inch.

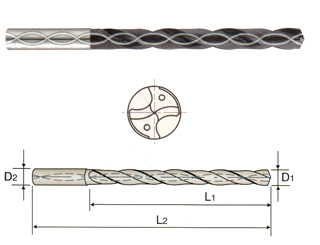

  CARBIDE DREAM DRILL WITH COOLANT HOLE, 8xD
EDP No. OD SD
(mm)
FLUTE
LENGTH (mm)
OAL
(mm)
Inch Metric
DH421008F1/83.175 6 3472
DH421229G#293.454 6 3472
DH421009F9/643.571 6 3472
DH421010F5/323.967 6 4381
DH421221G#214.039 6 4381
DH421011F11/644.366 6 4381
DH421012F3/164.763 6 5795
DH421013F13/645.159 6 5795
DH421014F7/325.558 6 5795
DH421015F15/645.954 6 5795
DH421016F1/46.350 8 76114
DH421106LF6.528 8 76114
DH421017F17/646.749 8 76114
DH421018F9/327.142 8 76114
DH421019F19/647.541 8 76114
DH421020F5/167.938 8 76114
DH421021F21/648.334 10 95142
DH421117LQ8.433 10 95142
DH421022F11/328.733 10 95142
DH421023F23/649.129 10 95142
DH421121LU9.347 10 95142
DH421024F3/89.525 10 95142
DH421025F25/649.921 10 95142
DH421026F13/3210.317 12 114162
DH421027F27/6410.716 12 114162
DH421028F7/1611.113 12 114162
DH421030F15/3211.908 12 114162
DH421031F31/6412.304 14 133178
DH421032F1/212.700 14 133178
DH421033F33/6413.096 14 133178
