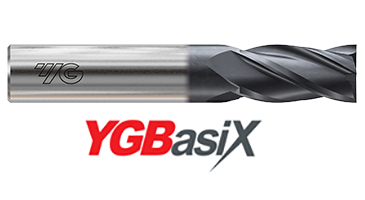

YGBasix END MILLS 4FL SQ. END REGULAR - G9H88/E5H88

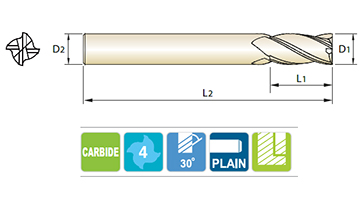

EDP No.	EDP No.	Mill Diameter	Shank Diameter	Length of Cut	Overall Length	Number of Flute
COATED	UNCOATED	D1	D2	L1	L2	Z
G9H88001N	E5H88001	1/64	1/8	3/64	1_1/2	4
G9H88002N	E5H88002	1/32	1/8	5/64	1_1/2	4
G9H88901N	E5H88901	1/32	1/8	1/8	1_1/2	4
G9H88003N	E5H88003	3/64	1/8	1/8	1_1/2	4
G9H88004N	E5H88004	1/16	1/8	3/16	1_1/2	4
G9H88902N	E5H88902	1/16	1/8	1/4	1_1/2	4
G9H88005N	E5H88005	5/64	1/8	3/16	1_1/2	4
G9H88903N	E5H88903	5/64	1/8	1/4	1_1/2	4
G9H88006N	E5H88006	3/32	1/8	3/8	1_1/2	4
G9H88007N	E5H88007	7/64	1/8	3/8	1_1/2	4
G9H88008N	E5H88008	1/8	1/8	1/2	1_1/2	4
G9H88009N	E5H88009	9/64	3/16	1/2	2"	4
G9H88904N	E5H88904	9/64	3/16	9/16	2"	4
G9H88010N	E5H88010	5/32	3/16	9/16	2"	4
G9H88011N	E5H88011	11/64	3/16	9/16	2"	4
G9H88905N	E5H88905	11/64	3/16	5/8	2"	4
G9H88012N	E5H88012	3/16	3/16	5/8	2"	4
G9H88013N	E5H88013	13/64	1/4	5/8	2_1/2	4
G9H88014N	E5H88014	7/32	1/4	5/8	2_1/2	4
G9H88015N	E5H88015	15/64	1/4	3/4	2_1/2	4
G9H88016N	E5H88016	1/4	1/4	3/4	2_1/2	4
G9H88017N	E5H88017	17/64	5/16	3/4	2_1/2	4
G9H88018N	E5H88018	9/32	5/16	3/4	2_1/2	4
G9H88019N	E5H88019	19/64	5/16	13/16	2_1/2	4
G9H88020N	E5H88020	5/16	5/16	13/16	2_1/2	4
G9H88021N	E5H88021	21/64	3/8	1"	2_1/2	4
G9H88022N	E5H88022	11/32	3/8	1"	2_1/2	4
G9H88023N	E5H88023	23/64	3/8	1"	2_1/2	4
G9H88024N	E5H88024	3/8	3/8	1"	2_1/2	4
G9H88025N	E5H88025	25/64	7/16	1"	2_3/4	4
G9H88026N	E5H88026	13/32	7/16	1"	2_3/4	4
G9H88027N	E5H88027	27/64	7/16	1"	2_3/4	4
G9H88028N	E5H88028	7/16	7/16	1"	2_3/4	4
G9H88029N	E5H88029	29/64	1/2	1"	3"	4
G9H88030N	E5H88030	15/32	1/2	1"	3"	4
G9H88031N	E5H88031	31/64	1/2	1"	3"	4
G9H88032N	E5H88032	1/2	1/2	1"	3"	4
G9H88906N	E5H88906	1/2	1/2	1_1/4	3"	4
G9H88033N	E5H88033	33/64	9/16	1_1/4	3_1/2	4
G9H88034N	E5H88034	17/32	9/16	1_1/4	3_1/2	4
G9H88036N	E5H88036	9/16	9/16	1_1/4	3_1/2	4
G9H88038N	E5H88038	19/32	5/8	1_1/4	3_1/2	4
G9H88040N	E5H88040	5/8	5/8	1_1/4	3_1/2	4
G9H88041N	E5H88041	41/64	3/4	1_1/2	4"	4
G9H88042N	E5H88042	21/32	3/4	1_1/2	4"	4
G9H88044N	E5H88044	11/16	3/4	1_1/2	4"	4
G9H88047N	E5H88047	47/64	3/4	1_1/2	4"	4
G9H88048N	E5H88048	3/4	3/4	1"	4"	4
G9H88907N	E5H88907	3/4	3/4	1_1/2	4"	4
G9H88052N	E5H88052	13/16	7/8	1_1/2	4"	4
G9H88056N	E5H88056	7/8	7/8	1_1/2	4"	4
G9H88060N	E5H88060	15/16	1"	1_1/2	4"	4
G9H88064N	E5H88064	1"	1"	1"	4"	4
G9H88908N	E5H88908	1"	1"	1_1/2	4"	4
G9H88080N	E5H88080	1_1/4	1_1/4	2"	4_1/2	4
