Milling	Home >

YGBasix END MILLS 2FL SQ. END REGULAR - G9H85/E5H85

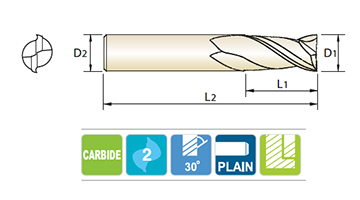

EDP No.	EDP No.	Mill Diameter	Shank Diameter	Length of Cut	Overall Length	Number of Flute
COATED	UNCOATED	D1	D2	L1	L2	Z
G9H85001N	E5H85001	1/64	1/8	3/64	1_1/2	2
G9H85002N	E5H85002	1/32	1/8	5/64	1_1/2	2
G9H85901N	E5H85901	1/32	1/8	1/8	1_1/2	2
G9H85003N	E5H85003	3/64	1/8	7/64	1_1/2	2
G9H85902N	E5H85902	3/64	1/8	1/8	1_1/2	2
G9H85004N	E5H85004	1/16	1/8	3/16	1_1/2	2
G9H85903N	E5H85903	1/16	1/8	1/4	1_1/2	2
G9H85005N	E5H85005	5/64	1/8	3/16	1_1/2	2
G9H85905N	E5H85905	5/64	1/8	1/4	1_1/2	2
G9H85006N	E5H85006	3/32	1/8	3/8	1_1/2	2
G9H85007N	E5H85007	7/64	1/8	3/8	1_1/2	2
G9H85008N	E5H85008	1/8	1/8	1/2	1_1/2	2
G9H85009N	E5H85009	9/64	3/16	1/2	2"	2
G9H85906N	E5H85906	9/64	3/16	9/16	2"	2
G9H85010N	E5H85010	5/32	3/16	9/16	2"	2
G9H85011N	E5H85011	11/64	3/16	9/16	2"	2
G9H85907N	E5H85907	11/64	3/16	5/8	2"	2
G9H85012N	E5H85012	3/16	3/16	5/8	2"	2
G9H85013N	E5H85013	13/64	1/4	5/8	2_1/2	2
G9H85014N	E5H85014	7/32	1/4	5/8	2_1/2	2
G9H85015N	E5H85015	15/64	1/4	3/4	2_1/2	2
G9H85016N	E5H85016	1/4	1/4	3/4	2_1/2	2
G9H85017N	E5H85017	17/64	5/16	3/4	2_1/2	2
G9H85018N	E5H85018	9/32	5/16	3/4	2_1/2	2
G9H85019N	E5H85019	19/64	5/16	13/16	2_1/2	2
G9H85020N	E5H85020	5/16	5/16	13/16	2_1/2	2
G9H85021N	E5H85021	21/64	3/8	1"	2_1/2	2
G9H85022N	E5H85022	11/32	3/8	1"	2_1/2	2
G9H85023N	E5H85023	23/64	3/8	1"	2_1/2	2
G9H85024N	E5H85024	3/8	3/8	1"	2_1/2	2
G9H85025N	E5H85025	25/64	7/16	1"	2_3/4	2
G9H85026N	E5H85026	13/32	7/16	1"	2_3/4	2
G9H85027N	E5H85027	27/64	7/16	1"	2_3/4	2
G9H85028N	E5H85028	7/16	7/16	1"	2_3/4	2
G9H85029N	E5H85029	29/64	1/2	1"	3"	2
G9H85030N	E5H85030	15/32	1/2	1"	3"	2
G9H85031N	E5H85031	31/64	1/2	1"	3"	2
G9H85032N	E5H85032	1/2	1/2	1"	3"	2
G9H85908N	E5H85908	1/2	1/2	1_1/4	3"	2
G9H85033N	E5H85033	33/64	9/16	1_1/4	3_1/2	2
G9H85034N	E5H85034	17/32	9/16	1_1/4	3_1/2	2
G9H85036N	E5H85036	9/16	9/16	1_1/4	3_1/2	2
G9H85040N	E5H85040	5/8	5/8	1_1/4	3_1/2	2
G9H85044N	E5H85044	11/16	3/4	1_1/2	4"	2
G9H85048N	E5H85048	3/4	3/4	1_1/2	4"	2
G9H85056N	E5H85056	7/8	7/8	1_1/2	4"	2
G9H85064N	E5H85064	1"	1"	1_1/2	4"	2
