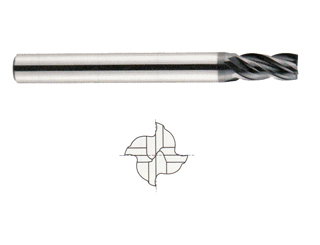

V7 INOX 4FLUTE STUB LENGTH SQUARE E/M

  V7 INOX 4Flute Stub Length Square E/M
EDP No. (Plain) EDP No. (Flat) O.D S.D L.O.C O.A.L
EMC75008 1/8 1/8 1/8 1 1/2
EMC75010 5/32 3/16 3/162
EMC75012 3/16 3/16 3/162
EMC75014 7/32 1/4 1/4 2
EMC75016 1/4 1/4 1/4 2
EMC75020 5/16 5/16 5/162
EMD60024 3/8 3/8 3/8 2
EMD60028 7/16 7/16 7/162 1/2
EMD60032 1/2 1/2 1/2 2 1/2
EMD60040 5/8 5/8 5/8 3
EMD60048 3/4 3/4 3/4 3
EMD600641 1 1 4
