Milling
HIGH PERFORMANCE CARBIDE STAINLESS STEEL TITANIUM

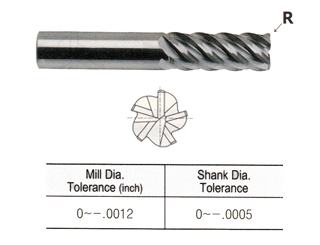

5 FLUTE 45 DEGREE HELIX REGULAR CORNER RADIUS TIALN-FUTURA COATED CARBIDE

  5 FLUTE REGULAR 45 DEG HELIX CORNER RADIUS TIALN-FUTURA COATED CARBIDE
EDP No. MILL SHANK FLUTE OAL Corner Radius
86573TF-030R 1/4 1/4 3/4 2-1/2 R.030
86584TF-030R 3/8 3/8 1 2-1/2 R.030
86584TF-060R 3/8 3/8 1 2-1/2 R.060
86593TF-030R 1/2 1/2 1-1/4 3 R.030
86593TF-060R 1/2 1/2 1-1/4 3 R.060
86593TF-090R 1/2 1/2 1-1/4 3 R.090
86595TF-030R 5/8 5/8 1-5/8 3-1/2 R.030
86595TF-060R 5/8 5/8 1-5/8 3-1/2 R.060
86595TF-090R 5/8 5/8 1-5/8 3-1/2 R.090
86595TF-125R 5/8 5/8 1-5/8 3-1/2 R.125
86598TF-030R 3/4 3/4 1-5/8 4 R.030
86598TF-060R 3/4 3/4 1-5/8 4 R.060
86598TF-090R 3/4 3/4 1-5/8 4 R.090
86598TF-125R 3/4 3/4 1-5/8 4 R.125
86598TF-156R 3/4 3/4 1-5/8 4 R.156
86598TF-187R 3/4 3/4 1-5/8 4 R.187
86600TF-030R 1 1 2 4 R.030
86600TF-060R 1 1 2 4 R.060
86600TF-090R 1 1 2 4 R.090
86600TF-125R 1 1 2 4 R.125
86600TF-156R 1 1 2 4 R.156
86600TF-187R 1 1 2 4 R.187
