Milling > HIGH PERFORMANCE > CARBIDE > STEEL
|
 |
|
|
|
|

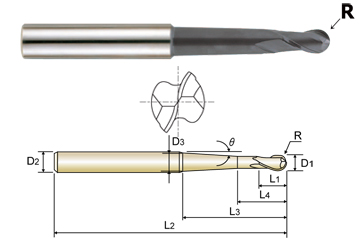

2 FLUTE BALL NOSE WITH TAPER NECK
|
|
|
|
|
|
|
|
 TAPER NECK / EM963 Series |
| R +/- .0005 |
MILL DIAMETER d1 |
SHANK DIAMETER d2 |
NECK DIAMETER d3 |
LENGTH OF CUT |
l2 |
Length Below Shank l3 |
OVERALL LENGTH l4 |
NECK TAPER ANGLE |
EDP No. |
| R1/32 |
1/16 |
1/4 |
.096 |
5/32 |
15/64 |
7/8 |
2-3/8 |
1.3Deg |
93526 |
| R1/32 |
1/16 |
1/4 |
.208 |
5/32 |
15/64 |
1-5/8 |
3-1/8 |
3Deg |
93527 |
| R1/16 |
1/8 |
1/4 |
.216 |
1/4 |
21/64 |
2-1/16 |
3-5/8 |
1.3Deg |
93528 |
| R3/32 |
3/16 |
3/8 |
.288 |
3/8 |
29/64 |
2-3/8 |
4-3/8 |
1.3Deg |
93529 |
| R1/8 |
1/4 |
3/8 |
.325 |
1/2 |
5/8 |
2-1/16 |
4-3/8 |
1.3Deg |
93530 |
| R5/32 |
5/16 |
1/2 |
.385 |
9/16 |
11/16 |
2-1/16 |
4-3/4 |
1.3Deg |
93531 |
| R3/16 |
3/8 |
1/2 |
.458 |
11/16 |
13/16 |
2-3/8 |
5-1/16 |
1.3Deg |
93532 |
| R1/4 |
1/2 |
3/4 |
.618 |
7/8 |
1 |
3-1/4 |
6-3/8 |
1.3Deg |
93533 |
|
|
 |
|
