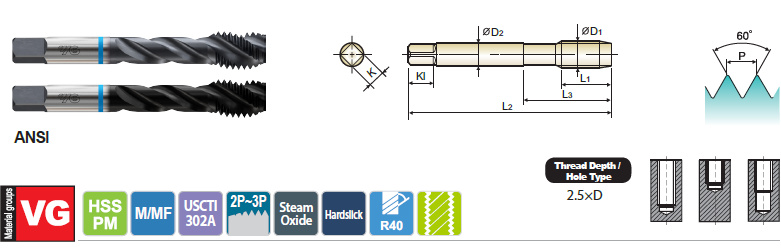

BLUE RING SPIRAL FLUTE Taps, ANSI Dimensions, for Steels & Stainless Steels up to 35HRc, and Exotics (BH,BM)
 Metric Spiral Fluted Taps Modified Bottoming Style -for Steels & Stainless Steels up to 35 HRc
Size Pitch No. of Flute Limits ANSI DIN Length / ANSI Shank
Steam Oxide Hardslick Coated Steam Oxide Hardslick Coated
EDP No. EDP No. EDP No. EDP No.
M3 0.5 3 D3 BH203 BM203 BD203 BO203
M3.5 0.6 3 D4 BH224 BM224 BD224 BO224
M4 0.7 3 D4 BH244 BM244 BD244 BO244
M5 0.8 3 D4 BH284 BM284 BD284 BO284
M6 1 3 D5 BH315 BM315 BD315 BO315
M7 1 3 D5 BH345 BM345 BD345 BO345
M8 1.25 3 D5 BH365 BM365 BD365 BO365
M8 1 3 D5 BH375 BM375 BD375 BO375
M10 1.5 3 D6 BH426 BM426 BD426 BO426
M10 1.25 3 D5 BH435 BM435 BD435 BO435
M12 1.75 3 D6 BH506 BM506 BD506 BO506
M12 1.25 3 D5 BH525 BM525 BD525 BO525
M14 2 3 D7 BH547 BM547 BD547 BO547
M14 1.5 3 D6 BH556 BM556 BD556 BO556
M16 2 3 D7 BH607 BM607 BD607 BO607
M16 1.5 3 D6 BH616 BM616 BD616 BO616
M18 2.5 4 D7 BH657 BM657 BD657 BO657
M18 1.5 4 D6 BH676 BM676 BD676 BO676
