ANSI TITANIUM & NICKEL < 44Rc
View TAP SELECTOR / CUTTING DATA

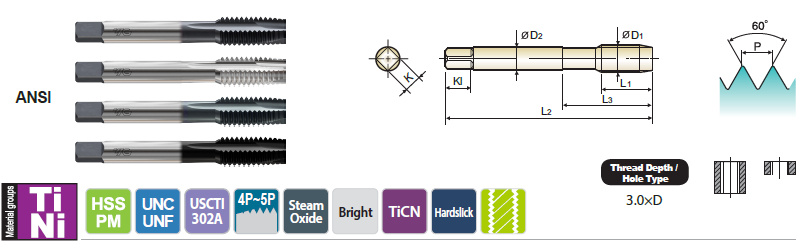

 Spiral Pointed Taps Plug Style -for Titanium Alloys & Nickle Base Alloys up to 44HRc
Size Thread / Inch No. of Flute Limits Steam Oxide TiN Coated TiCN Coated Hardslick Coated
UNC UNF EDP No. EDP No. EDP No. EDP No.
2 56   2 H2 I3082 M8082 I5082 J6082
4 40   2 H2 I3162 M8162 I5162 J6162
5 40   3 H2 I3202 M8202 I5202 J6202
6 32   3 H3 I3243 M8243 I5243 J6243
8 32   3 H3 I3283 M8283 I5283 J6283
10 24   3 H3 I3323 M8323 I5323 J6323
    32 3 H3 I3343 M8343 I5343 J6343
1/4 20   3 H3 I3403 M8403 I5403 J6403
      3 H5 I3405 M8405 I5405 J6405
    28 3 H3 I3423 M8423 I5423 J6423
      3 H4 I3424 M8424 I5424 J6424
5/16 18   3 H3 I3443 M8443 I5443 J6443
      3 H5 I3445 M8445 I5445 J6445
    24 3 H3 I3463 M8463 I5463 J6463
3/8 16   3 H3 I3483 M8483 I5483 J6483
      3 H5 I3485 M8485 I5485 J6485
    24 3 H3 I3503 M8503 I5503 J6503
      3 H4 I3504 M8504 I5504 J6504
7/16 14   3 H3 I3523 M8523 I5523 J6523
      3 H5 I3525 M8525 I5525 J6525
    20 3 H3 I3543 M8543 I5543 J6543
      3 H5 I3545 M8545 I5545 J6545
1/2 13   3 H3 I3563 M8563 I5563 J6563
      3 H5 I3565 M8565 I5565 J6565
    20 3 H3 I3583 M8583 I5583 J6583
      3 H5 I3585 M8585 I5585 J6585
9/16 12   3 H3 I3603 M8603 I5603 J6603
      3 H5 I3605 M8605 I5605 J6605
    18 3 H3 I3623 M8623 I5623 J6623
      3 H5 I3625 M8625 I5625 J6625
5/8 11   3 H3 I3643 M8643 I5643 J6643
      3 H5 I3645 M8645 I5645 J6645
    18 3 H3 I3663 M8663 I5663 J6663
      3 H5 I3665 M8665 I5665 J6665
3/4 10   3 H3 I3703 M8703 I5703 J6703
      3 H5 I3705 M8705 I5705 J6705
    16 3 H3 I3723 M8723 I5723 J6723
      3 H5 I3725 M8725 I5725 J6725
