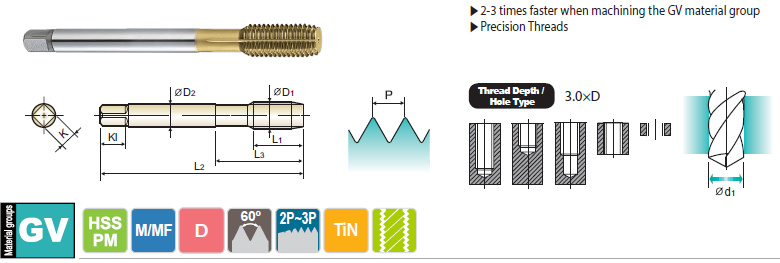

Synchro Tap Form Tap
|
|
|
|
|
|
|
|
 Synchro Tap Form Tap |
| EDP No. |
SIZE (D) |
TPI |
Thread Series |
Size & Pitch |
Pitch Limit |
Class of Fit |
OAL (L) |
Thread Length (Lt) |
Shank Dia. (d) |
Neck Length (L3) |
Square Size (k) |
Square Length(kl) |
Flute Style |
| TTS64205 | M3 | 0.5 | M | M3X0.5 | D5 | 6H | 1.94 | .197 | .141 | .646 | .110 | .190 | Form |
| TTS64246 | M4 | 0.7 | M | M4X0.7 | D6 | 6H | 2.13 | .276 | .168 | .768 | .131 | .250 | Form |
| TTS64287 | M5 | 0.8 | M | M5X0.8 | D7 | 6H | 2.38 | .315 | .194 | .933 | .152 | .250 | Form |
| TTS64318 | M6 | 1.0 | M | M6X1 | D8 | 6H | 2.50 | .394 | .255 | 1.000 | .191 | .310 | Form |
| TTS64369 | M8 | 1.25 | M | M8X1.25 | D9 | 6H | 2.72 | .492 | .318 | 1.126 | .238 | .380 | Form |
| TTS64420 | M10 | 1.5 | M | M10X1.5 | D10 | 6H | 2.94 | .591 | .381 | 1.252 | .286 | .440 | Form |
| TTS6450A | M12 | 1.75 | M | M12X1.75 | D11 | 6H | 3.38 | .689 | .367 | 2.067 | .275 | .440 | Form |
| TTS6454B | M14 | 2 | M | M14X2 | D12 | 6H | 3.59 | .787 | .429 | 2.067 | .322 | .500 | Form |
| TTS6460B | M16 | 2 | M | M16X2 | D12 | 6H | 3.81 | .787 | .480 | 2.205 | .360 | .560 | Form |
| TTS6465B | M18 | 2.5 | M | M18X2.5 | D12 | 6H | 4.03 | .984 | .542 | 2.205 | .406 | .630 | Form |
| TTS6470B | M20 | 2.5 | M | M20X2.5 | D12 | 6H | 4.47 | .984 | .652 | 2.480 | .489 | .690 | Form |
| EDP No. |
SIZE (D) |
TPI |
Thread Series |
Size & Pitch |
Pitch Limit |
Class of Fit |
OAL (L) |
Thread Length (Lt) |
Shank Dia. (d) |
Neck Length (L3) |
Square Size (k) |
Square Length(kl) |
Flute Style |
| TTS64378 | M8 | 1.0 | MF | M8X1.0 | D8 | 6H | 2.72 | .394 | .318 | 1.126 | .238 | .380 | Form |
| TTS64439 | M10 | 1.25 | MF | M10X1.25 | D9 | 6H | 2.94 | .492 | .381 | 1.252 | .286 | .440 | Form |
| TTS64520 | M12 | 1.25 | MF | M12X1.25 | D10 | 6H | 3.38 | .492 | .367 | 2.067 | .275 | .440 | Form |
| TTS64550 | M14 | 1.5 | MF | M14X1.5 | D10 | 6H | 3.59 | .591 | .429 | 2.067 | .322 | .500 | Form |
| TTS64610 | M16 | 1.5 | MF | M16X1.5 | D10 | 6H | 3.81 | .591 | .480 | 2.205 | .360 | .560 | Form |
| TTS64670 | M18 | 1.5 | MF | M18X1.5 | D10 | 6H | 4.03 | .591 | .542 | 2.205 | .406 | .630 | Form |
| TTS64720 | M20 | 1.5 | MF | M20X1.5 | D10 | 6H | 4.47 | .984 | .652 | 2.480 | .489 | .690 | Form |
|
 |
|
|
